Accurately interpreting an oxygen flow meter is paramount in ensuring the safe and effective delivery of supplemental oxygen. Misreading this crucial piece of medical equipment can have serious consequences, impacting a patient’s health and potentially leading to adverse events. Therefore, understanding the intricacies of the oxygen flow meter’s markings, calibrations, and operational principles is not merely a technical skill; it’s a fundamental requirement for any healthcare professional involved in oxygen therapy. This detailed guide will equip you with the knowledge and confidence to accurately read and interpret oxygen flow rates, regardless of the specific type of flow meter employed. We will explore the various types of flow meters encountered in clinical settings, examining the differences in their design and emphasizing the commonalities that underpin accurate readings. Furthermore, we will delve into the practical applications of understanding oxygen flow rates, highlighting their importance in managing various respiratory conditions and ensuring patient safety. This comprehensive understanding is critical for optimizing treatment efficacy and minimizing the risk of complications. Ultimately, mastering the art of reading an oxygen flow meter is an investment in patient well-being and a testament to professional competence.
Moreover, understanding the units of measurement is crucial for accurate interpretation. Oxygen flow is typically measured in liters per minute (L/M). Consequently, it is imperative to locate the L/M scale on the flow meter itself; this is usually clearly marked and prominently displayed. However, depending on the age and manufacturer of the meter, the scale may appear slightly different. Some meters feature a single, easily discernible scale, while others may have multiple scales to account for different types of oxygen delivery systems. Therefore, careful observation is required to identify the correct scale corresponding to the specific oxygen delivery device in use. For instance, a nasal cannula will typically require a lower flow rate compared to a non-rebreather mask. In addition to the numerical markings, understanding the flow meter’s physical indicators is vital. Many meters utilize a ball or needle within a graduated tube; the position of this indicator directly corresponds to the flow rate. It is important to note that parallax error can occur if the observer’s eye isn’t positioned directly in line with the indicator. To mitigate this, ensure your line of sight is perpendicular to the flow meter’s scale to obtain the most accurate reading. Furthermore, regular maintenance and calibration checks of the oxygen flow meter are essential to ensure its accuracy. A malfunctioning meter can provide false readings, potentially leading to inadequate or excessive oxygen delivery, both of which can be detrimental to the patient’s health. Hence, familiarity with the meter’s operational characteristics and the proper procedures for maintenance is essential for ensuring the reliability of the data obtained.
Finally, the practical application of accurate oxygen flow meter reading extends beyond simply obtaining a numerical value; it’s about understanding the clinical implications of that value. For example, a low flow rate might indicate insufficient oxygen saturation, potentially requiring adjustments to ensure adequate oxygenation. Conversely, an excessively high flow rate could lead to oxygen toxicity, a serious complication that needs to be avoided. Therefore, interpreting the flow meter reading in the context of the patient’s clinical presentation and oxygen saturation levels is of paramount importance. This necessitates a holistic approach that integrates the flow meter reading with other vital signs and diagnostic data. In conclusion, the ability to accurately read an oxygen flow meter is not just a technical skill but an essential element of safe and effective patient care. Regular practice, attention to detail, and a comprehensive understanding of the principles underlying oxygen delivery are key to achieving competence in this critical area. This includes not only reading the meter accurately, but also understanding the clinical context and potential consequences of both insufficient and excessive oxygen delivery. Consistent proficiency in this skill will undoubtedly contribute to improved patient outcomes and reflect a high level of professional responsibility.
Understanding Oxygen Flow Meter Types and Units
Oxygen Flow Meter Types
Knowing how to read an oxygen flow meter is crucial for ensuring safe and effective oxygen therapy. Before we delve into reading the meter itself, it’s important to understand the different types of flow meters available. This will help you identify the specific features and units of measurement you’ll encounter.
Bourdon Gauge Flowmeters
Bourdon gauge flowmeters are a common type, recognizable by their circular gauge with a needle indicating the flow rate. These meters are generally simple and relatively inexpensive. They measure flow based on the pressure exerted by the oxygen flowing through the system. A drawback is that their accuracy can be affected by changes in pressure within the oxygen delivery system. For instance, kinks or obstructions in the tubing can throw off the reading. Bourdon gauges typically measure flow in liters per minute (LPM).
Ball Flowmeters
Ball flowmeters, also known as Thorpe tubes, are another widely used type. These are easily identifiable by a vertical tube containing a freely moving ball. The oxygen flow pushes the ball upward, and its position in the tube indicates the flow rate. The markings on the tube are calibrated to show the liters per minute (LPM). These meters are generally more accurate and less susceptible to changes in system pressure than Bourdon gauges. They provide a visual, straightforward reading, and their design makes them less prone to issues caused by kinks or obstructions.
Electronic Flowmeters
Electronic flowmeters are the most technologically advanced type. These use sensors to measure oxygen flow and display the reading digitally. They typically provide a more precise reading and can be easier to read, especially for individuals with vision impairments. Electronic flowmeters often include additional features, such as alarms for low flow rates or power failures. They can also record flow data over time, which is extremely useful for tracking treatment progress. However, their functionality relies on battery power and they require calibration.
Units of Measurement
Oxygen flow is almost universally measured in liters per minute (LPM). This unit represents the volume of oxygen delivered per minute. Understanding this unit is fundamental to correctly administering oxygen therapy. Other units, such as cubic centimeters per minute (cc/min) might rarely be used in certain contexts, but LPM remains the standard.
| Flow Meter Type | Units of Measurement | Advantages | Disadvantages |
|---|---|---|---|
| Bourdon Gauge | LPM | Simple, inexpensive | Can be inaccurate, affected by pressure changes |
| Ball (Thorpe Tube) | LPM | Accurate, less sensitive to pressure changes | Requires careful observation |
| Electronic | LPM (and others, depending on model) | Precise, digital display, additional features | Requires power, needs calibration |
Identifying Key Components of the Flow Meter
Understanding the Flowmeter’s Main Parts
Oxygen flow meters, crucial for delivering the precise amount of oxygen to a patient, aren’t overly complicated, but understanding their key components is essential for safe and accurate use. These meters typically consist of several interconnected parts working in harmony to display the oxygen flow rate. Primarily, you’ll encounter a flow control knob, a flowmeter tube (also known as a Thorpe tube), and a calibrated scale. Let’s delve a bit deeper into each component.
Detailed Examination of the Flowmeter Tube and its Calibrations
The Thorpe Tube: The Heart of the Meter
The most prominent feature of an oxygen flow meter is the Thorpe tube, a transparent, usually glass or plastic, tube with a precisely calibrated scale. This tube is the visual representation of the oxygen flow rate. The design of the Thorpe tube incorporates a cleverly engineered system of internal constructions that ensures a constant flow rate regardless of downstream pressure, a vital element for consistent oxygen delivery, even as factors like tubing length or obstructions vary. The tube itself is not simply a hollow cylinder, but instead incorporates strategically placed constrictions or internal ball bearings that allow for accurate measurement of oxygen delivery. This unique design ensures that the flow is directly proportional to the height of the floating ball inside the tube, hence providing an easy-to-read visual display.
Understanding the Calibrated Scale
The Thorpe tube features a clearly marked scale, usually expressed in liters per minute (LPM). This scale is the key to interpreting the flow rate. It’s crucial to understand that this scale is not linear; the graduations are designed to reflect the non-linear relationship between the flow rate and the position of the ball in the tube. Each mark represents a specific oxygen flow rate, allowing for precise adjustments. The precision of these markings is essential for medical applications where even minor variations in oxygen delivery could impact patient health.
Reading the Flow Rate: A Practical Guide

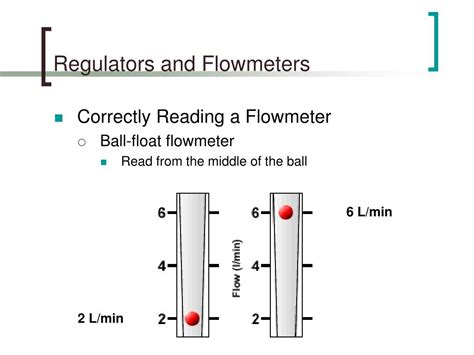

Reading the flow rate is straightforward once you locate the floating indicator (often a ball) within the Thorpe tube. Simply note the value on the scale that corresponds to the top of the indicator ball. This value, expressed in LPM, indicates the current oxygen flow rate. Always ensure the meter is positioned upright to obtain an accurate reading. A poorly positioned meter can cause inaccurate measurements and potentially compromise patient care. Accurate readings require careful observation and correct positioning of the device.
| Component | Function | Importance |
|---|---|---|
| Flow Control Knob | Adjusts the flow rate of oxygen | Ensures precise oxygen delivery |
| Thorpe Tube | Displays the oxygen flow rate visually | Provides a direct visual representation of the LPM |
| Calibrated Scale (LPM) | Indicates the specific flow rate in Liters per Minute | Crucial for accurate oxygen administration |
The Flow Control Knob: Precision in Your Hands
The flow control knob, located at the top or side of the flow meter, allows you to adjust the oxygen flow rate. It’s a simple yet crucial component, providing the user with control over the oxygen delivery. Careful and gradual adjustments should be made using the flow control knob, ensuring the desired flow rate is accurately set before leaving the patient. Always make incremental adjustments, closely observing the change in the level of the float within the Thorpe tube to ensure you achieve the precise settings for optimal patient care.
Calibrating and Verifying Meter Accuracy
Understanding Calibration Needs
Regular calibration of your oxygen flow meter is crucial for ensuring the accuracy of oxygen delivery. Inaccurate readings can have serious consequences for patients relying on supplemental oxygen. The frequency of calibration depends on several factors including the type of meter, its usage intensity (frequent use necessitates more frequent calibrations), and the manufacturer’s recommendations. Always consult the manufacturer’s instructions for specific guidance on calibration intervals. Generally, you should expect to calibrate your meter at least annually, or more often if you notice any inconsistencies in readings or if the meter has been subjected to any significant impact or environmental changes (e.g., extreme temperature fluctuations, drops).
Calibration Methods and Equipment
Several methods exist for calibrating oxygen flow meters, depending on the meter’s design and sophistication. Simple flow meters may only require a visual check against a known standard flow source, while more advanced meters might need electronic calibration using specialized equipment. Before commencing any calibration process, ensure that you have all the necessary tools and equipment, including a calibration standard (a device that provides a known and accurate flow rate), tubing connectors compatible with both the meter and the standard, and any software or interfaces required for electronic calibration.
Step-by-Step Calibration Procedure
Let’s detail a typical calibration process for a common type of oxygen flow meter. Remember to always follow your specific meter’s manufacturer instructions, as procedures can vary.
Preparation
Begin by carefully inspecting the meter for any visible damage or signs of malfunction. Ensure all connections are secure and free from leaks. Then, connect the calibration standard to the oxygen flow meter using the appropriate tubing. Make sure all connections are airtight to avoid inaccurate readings due to leaks. For accurate measurements, ensure that the ambient temperature and pressure are noted. These factors can subtly affect flow rates.
Calibration Process
Next, set the calibration standard to deliver a known flow rate. This is usually done via a control dial or digital input on the standard. Start with a low flow rate and gradually increase to the highest flow rate the meter is designed to measure. Compare the reading displayed on your oxygen flow meter with the known flow rate from the calibration standard. This comparison should be done at several different flow rates across the meter’s range. Any discrepancies should be carefully documented.
| Flow Rate (L/min) (Calibration Standard) | Flow Rate (L/min) (Oxygen Flow Meter) | Difference (L/min) |
|---|---|---|
| 1 | 1.05 | 0.05 |
| 2 | 2.02 | 0.02 |
| 5 | 4.9 | -0.1 |
| 10 | 9.8 | -0.2 |
Adjustment and Verification
Depending on the meter, some meters might allow for adjustments based on the observed differences. If your meter has adjustable components, carefully make adjustments according to the manufacturer’s instructions. After making any adjustments, repeat the calibration process to verify the accuracy of the corrections. If significant discrepancies persist after calibration, the meter may require professional service or replacement.
Thorough documentation of the calibration process, including dates, observed readings, adjustments made, and the calibration standard used, is critical for maintaining regulatory compliance and ensuring patient safety.
Reading the Flow Rate Indicator: Literals and Numerical Displays
Understanding Oxygen Flow Meters
Oxygen flow meters are crucial devices in healthcare settings, accurately measuring and regulating the flow of oxygen delivered to patients. Understanding how to read these meters is paramount for ensuring patient safety and the efficacy of oxygen therapy. These meters come in various designs, but they all share the fundamental goal of providing a clear and unambiguous reading of the oxygen flow rate. This rate is usually expressed in liters per minute (LPM).
Interpreting Literals on the Flow Meter
Some older or simpler oxygen flow meters might use literal indicators instead of purely numerical displays. These often involve a ball or float within a tapered glass tube. The position of the ball indicates the flow rate. The tube itself is marked with graduated lines or labeled sections corresponding to specific flow rates. Accurate reading requires careful observation of the ball’s position, ensuring your line of sight is perpendicular to the tube to avoid parallax error (a misreading due to the angle of observation).
Reading Numerical Displays on the Flow Meter
Modern oxygen flow meters commonly feature digital numerical displays. These displays directly show the oxygen flow rate in LPM, eliminating the need for interpretation of ball positions. The numerals are usually large and clear, making reading straightforward. However, it’s important to check the units (LPM) to confirm you are reading the value correctly and to always double-check the reading against the expected settings.
Troubleshooting and Common Issues with Numerical Displays
Understanding Display Variations
Numerical displays may vary slightly between manufacturers. Some meters might offer larger, brighter displays for enhanced readability in low-light conditions, while others may have more compact screens. Familiarize yourself with the specific model you are using to understand its unique characteristics and ensure you interpret the readings accurately. Pay close attention to any decimal points or additional indicator lights. Some meters might include an alarm indicator which lights up when the flow rate falls outside a pre-set range.
Addressing Display Errors
Occasionally, numerical displays may malfunction. If the display appears blank or shows erratic readings, you should immediately alert a qualified healthcare professional. Never attempt to adjust or repair the meter yourself. A malfunctioning oxygen flow meter can compromise the safety and well-being of the patient. Report any issues promptly to avoid potential complications. Regularly scheduled maintenance and calibration of the flow meter will prevent such issues and ensure its continued accurate operation.
Calibration and Accuracy
The accuracy of the numerical display is dependent on proper calibration of the entire oxygen delivery system. Regular calibration checks, performed by qualified personnel, help ensure the flow meter provides accurate readings. These checks compare the meter’s displayed flow rate against a known standard. Any significant discrepancies should be addressed to prevent inaccurate oxygen delivery. This preventative maintenance is critical for ensuring patient safety and the reliability of the oxygen therapy.
| Possible Display Issue | Possible Cause | Action to Take |
|---|---|---|
| Blank Display | Power failure, internal malfunction, loose connection | Check power supply, contact maintenance |
| Erratic Readings | Sensor malfunction, electrical interference | Contact a qualified technician |
| Inconsistent Readings | Improper calibration, obstruction in the oxygen flow pathway | Check for obstructions, schedule calibration |
Interpreting Flow Rate Units (LPM, mL/min)
Understanding Liters Per Minute (LPM)
Oxygen flow meters often display the flow rate in liters per minute (LPM). This unit indicates the volume of oxygen delivered in liters within one minute. For example, a setting of 2 LPM means that 2 liters of oxygen are flowing through the delivery system every minute. This is a common unit for higher oxygen flow rates, often used in situations requiring significant supplemental oxygen, such as during certain medical procedures or for patients with severe respiratory distress. It’s crucial to understand that the actual amount of oxygen a patient receives depends not only on the flow rate but also on the type of oxygen delivery device used (e.g., nasal cannula, mask) and the patient’s breathing pattern.
Understanding Milliliters Per Minute (mL/min)
Milliliters per minute (mL/min) represents a smaller unit of measurement for oxygen flow. Since there are 1000 mL in 1 L, a flow rate of 1000 mL/min is equivalent to 1 LPM. This unit is frequently employed for lower oxygen flow rates, typically seen in situations where less supplemental oxygen is needed, or when precise control is required. For instance, infants or young children often receive oxygen at flow rates measured in mL/min. The precise delivery of oxygen at lower flow rates is important for their delicate respiratory systems.
Converting Between LPM and mL/min
Converting between LPM and mL/min is straightforward. To convert from LPM to mL/min, multiply the LPM value by 1000. Conversely, to convert from mL/min to LPM, divide the mL/min value by 1000. For example, 5 LPM is equal to 5000 mL/min, and 2500 mL/min is equivalent to 2.5 LPM. This simple conversion allows for easy comparison and understanding of oxygen flow rates regardless of the unit used.
Reading the Flow Meter Scale
Oxygen flow meters typically have a numbered scale that indicates the flow rate. It’s essential to carefully observe the markings on the scale to accurately determine the setting. Most meters use clear numerical markings, but understanding the increments is vital for precision. Some meters might have smaller graduations between the main numbered markings, allowing for finer adjustments. Always double-check the reading before initiating or adjusting the oxygen flow to prevent errors.
Practical Considerations and Safety: A Deeper Dive into Accuracy and Patient Needs
Accurate reading and interpretation of the oxygen flow meter are paramount for patient safety. Even small discrepancies in the flow rate can impact the effectiveness of oxygen therapy. The chosen flow rate should align with the patient’s individual needs, as determined by a healthcare professional based on factors like blood oxygen levels (SpO2), respiratory rate, and overall clinical condition. Over-oxygenation can be just as detrimental as under-oxygenation, potentially leading to oxygen toxicity. Conversely, insufficient oxygen delivery may exacerbate respiratory distress. Therefore, it’s crucial to regularly monitor the patient’s response to oxygen therapy and adjust the flow rate accordingly under the guidance of a healthcare professional. This often involves observing the patient’s breathing effort, respiratory rate, heart rate, and oxygen saturation levels.
Furthermore, the accuracy of the flow meter itself should be regularly checked and calibrated to ensure reliable readings. Faulty equipment can lead to inaccurate delivery of oxygen, potentially compromising patient safety. Regular maintenance and calibration are crucial components of ensuring safe and effective oxygen therapy.
The type of oxygen delivery system is also a key consideration. A simple nasal cannula delivers a lower flow rate compared to a face mask. The patient’s comfort and tolerance must also be assessed; for instance, a higher flow rate might cause discomfort or dryness.
| Flow Rate (LPM) | Flow Rate (mL/min) | Typical Use Case (Example) |
|---|---|---|
| 1 | 1000 | Low flow oxygen therapy for mild respiratory distress |
| 2 | 2000 | Supplemental oxygen for patients with moderate respiratory issues |
| 5 | 5000 | Higher flow oxygen during medical procedures or for severe cases |
| 10 | 10000 | High flow oxygen in critical care settings |
Recognizing and Addressing Meter Malfunctions
Understanding Common Oxygen Flow Meter Issues
Oxygen flow meters, while generally reliable, can occasionally malfunction. Understanding the signs of a problem is crucial for patient safety. These malfunctions can range from minor inaccuracies to complete failure, potentially leading to insufficient or excessive oxygen delivery. Prompt identification and appropriate action are paramount.
Visual Inspection: The First Line of Defense
Before even turning on the meter, a quick visual check can reveal potential problems. Look for any obvious damage, such as cracks in the housing, loose connections, or a damaged flow indicator. Check the tubing for kinks or obstructions that might restrict oxygen flow. Examine the gauge itself for any unusual wear or discoloration. A thorough visual inspection is a simple yet effective first step in troubleshooting.
Checking for Accurate Readings
Compare the flow meter reading with the prescribed oxygen flow rate documented in the patient’s chart. Discrepancies may indicate a malfunction. If the reading consistently deviates from the prescribed rate, further investigation is necessary. Remember to account for potential factors that might influence the reading, such as changes in pressure or leaks in the system.
No Flow or Inconsistent Flow
A complete lack of oxygen flow is a serious emergency. Immediately check the oxygen supply source to ensure it’s turned on and adequately pressurized. Examine all connections to eliminate leaks or blockages. Inconsistent flow, characterized by fluctuating readings, may point to a problem with the meter’s internal mechanism or a blockage in the delivery system. Always prioritize patient safety and secure alternative oxygen sources if necessary.
Responding to Erratic Readings
Erratic readings, where the flow indicator jumps or fluctuates wildly, suggest a significant problem. This could be due to a faulty internal component within the flow meter itself or a problem with the pressure regulator. It’s crucial to replace the meter immediately to ensure the safety of the patient. Never attempt to repair the meter yourself; always contact qualified personnel for assistance.
Troubleshooting and Repair Strategies: A Detailed Guide
When a malfunction is suspected, a systematic approach to troubleshooting is vital. Begin by verifying the oxygen source: is the tank full, and is the valve open? Next, meticulously check all connections for leaks, ensuring that all fittings are properly secured. Listen for any unusual hissing sounds which might indicate a leak. A simple soap solution applied to the connections can help visualize escaping gas.
If leaks are identified, tighten connections or replace damaged tubing as appropriate. If the problem persists, visually inspect the flow meter for any signs of physical damage. A cracked casing or a damaged flow indicator usually necessitates replacement. Remember, attempts at internal repair are generally not advised and are best left to qualified technicians.
Consider using a second, functioning oxygen flow meter as a comparison. Connect it to the same oxygen source and compare the readings. If both meters show similar readings, the issue is unlikely to be with the meter itself but rather the oxygen source or delivery system. If the second meter shows a correct reading, this confirms the first meter’s malfunction.
It’s crucial to maintain thorough documentation of all troubleshooting steps and any observed discrepancies. This comprehensive record is invaluable in ensuring patient safety and identifying recurring issues. Remember that patient safety is paramount; if you are uncertain about the cause of a malfunction, replace the oxygen flow meter and seek the assistance of qualified medical personnel.
Documentation and Reporting
Accurate record-keeping is essential. Document all observations, troubleshooting steps, and corrective actions taken. This information is vital for ensuring patient safety and facilitating future maintenance or repairs. Maintain a log of meter malfunctions, including dates, times, and the nature of the problem. This data can be valuable in identifying patterns and proactively addressing potential issues.
| Problem | Possible Cause | Solution |
|---|---|---|
| No flow | Empty oxygen tank, closed valve, kinked tubing, blocked flowmeter | Check tank, open valve, straighten tubing, replace flowmeter |
| Inconsistent flow | Faulty flowmeter, leaks in system | Replace flowmeter, check for leaks |
| Erratic readings | Faulty flowmeter, damaged internal components | Replace flowmeter |
Ensuring Safe and Accurate Meter Operation
Understanding Your Oxygen Flow Meter
Before diving into safe operation, it’s crucial to understand your specific oxygen flow meter. Different models may have slightly different features and displays. Familiarize yourself with your meter’s instruction manual. Pay close attention to the units of measurement (liters per minute, LPM, is common) and the range of flow rates it can deliver. Note any markings or indicators that highlight crucial operational information or potential issues.
Proper Meter Placement and Handling
Always place your oxygen flow meter on a stable, level surface, away from heat sources, direct sunlight, and moisture. Avoid jarring or dropping the meter, as this could damage internal components and lead to inaccurate readings. Handle the meter gently and avoid touching the sensing elements directly. Keep it clean by regularly wiping it down with a damp cloth; refer to the manufacturer’s instructions for cleaning guidelines.
Regular Calibration and Maintenance
Oxygen flow meters, like any precision instrument, require regular calibration and maintenance to ensure accurate readings. The frequency of calibration will depend on the manufacturer’s recommendations and the meter’s usage. It’s typically advisable to have it professionally calibrated at least annually. Regular visual checks for any damage or wear and tear are also recommended. Report any observed issues to a qualified technician immediately.
Checking for Leaks
Leaks in the oxygen delivery system can be dangerous, leading to insufficient oxygen delivery to the patient. Regularly check all connections for leaks by carefully inspecting them for loose fittings or damage. You may also need to use a leak detection solution (as recommended by the manufacturer) to identify any subtle leaks. Address any leaks immediately before proceeding with oxygen administration.
Interpreting the Flow Rate Display
Understanding the flow rate display is paramount. The meter will usually indicate the flow rate in liters per minute (LPM). Make sure you understand how to adjust the flow rate correctly using the control knob or dial. Double-check the setting before connecting the oxygen tubing to the patient. It’s always good practice to have another person verify the flow rate setting as an additional safety measure.
Understanding Alarm Systems (If Applicable)
Many modern oxygen flow meters incorporate alarm systems to alert users to potential problems. These alarms might signal low oxygen flow, high flow pressure, or other critical issues. Familiarize yourself with the meaning of different alarms and the appropriate response to each. Regular testing of the alarm system is essential to ensure it functions correctly. If an alarm sounds, investigate the cause immediately and correct it before continuing oxygen administration.
Troubleshooting Common Issues: A Detailed Look
Even with careful handling, issues can arise. Let’s delve into common problems and their solutions. A common issue is an inaccurate flow rate. This could be due to a blocked flow meter, a faulty sensor, or a leak in the system. Inspect the entire oxygen delivery system for blockages, starting at the oxygen source and working your way to the patient. Check all connections for leaks, and use a leak detection solution if necessary. If a leak is found, tighten connections or replace damaged tubing. If the problem persists, the flow meter itself might be malfunctioning and require professional servicing or replacement. Another potential issue is a malfunctioning alarm system. This could be caused by low battery power, a faulty alarm sensor, or a problem with the alarm circuitry. Check the meter’s battery, and if the problem persists contact a medical technician for a thorough examination. Always refer to the manufacturer’s troubleshooting guide for specific instructions and recommendations. Maintaining a detailed log of usage, maintenance, and any observed irregularities can be invaluable in pinpointing problems and ensuring prompt resolution. This log is a valuable tool for monitoring meter performance and identifying potential issues before they escalate into safety concerns. Remember to always prioritize patient safety. If you encounter a problem you are unsure about, seek guidance from a qualified healthcare professional or technician.
| Problem | Possible Cause | Solution |
|---|---|---|
| Inaccurate Flow Rate | Blocked flow meter, faulty sensor, leak | Inspect system for blockages and leaks; replace damaged parts; professional servicing |
| Malfunctioning Alarm | Low battery, faulty sensor, circuitry problem | Check battery; contact technician for repair or replacement |
| No Display | Power failure, faulty display | Check power source; contact technician |
Troubleshooting Common Reading Difficulties
Understanding the Units of Measurement
Oxygen flow is typically measured in liters per minute (LPM). It’s crucial to understand that this indicates the volume of oxygen delivered per minute. Sometimes, you might encounter older equipment that uses different units, so always double-check the meter’s markings. Confirm that you are reading the correct scale on the flowmeter – many have multiple scales for different gases or flow ranges. Misinterpreting the units is a common source of error, leading to either insufficient or excessive oxygen delivery. Always verify the unit of measurement against the equipment manual or labels.
Dealing with a Difficult-to-Read Gauge
Sometimes, the gauge itself can be the problem. Old or poorly maintained flowmeters might have faded markings, scratched lenses, or inaccurate needles. Poor lighting can also make readings difficult. If the markings are unclear, consider using a magnifying glass for a clearer view. Try adjusting the lighting to improve visibility. If the problem persists, report the faulty equipment to the relevant personnel immediately for repair or replacement. Don’t attempt to compensate for a faulty meter’s reading – this could lead to critical errors.
Interpreting the Flowmeter’s Scale
Flowmeters use various scale designs (linear or non-linear). A linear scale displays a consistent increment between markings, while a non-linear scale has uneven spacing. Understanding your flowmeter’s scale type is crucial for accurate reading. Carefully observe the markings and their spacing to avoid misinterpreting the flow rate. If you are unsure about the scale, refer to the user manual or consult a qualified medical professional for assistance.
Addressing Parallax Error
Parallax error occurs when the needle’s position is read from an angle, causing an inaccurate reading. Always position your eye directly in line with the needle to prevent this. Look straight on at the needle, ensuring you’re not viewing it from above or below. Consistent positioning is key to avoiding parallax errors and ensuring the accuracy of your oxygen flow reading.
Recognizing and Correcting for Bubbles in the Flowmeter
Bubbles trapped within the flowmeter’s tubing or chamber can interfere with the flow reading, causing inaccurate measurements. Check the tubing for kinks or obstructions that might be trapping air bubbles. Gently tap the flowmeter to dislodge any trapped air bubbles. If bubbles persist, the problem may require professional attention; report it to the appropriate staff member immediately.
Identifying and Dealing with Calibration Issues
Over time, flowmeters can drift out of calibration, leading to inaccurate readings. Regular calibration by qualified personnel is crucial to maintain accuracy. If you suspect a calibration issue (consistently off readings), the flowmeter should be removed from service and sent for recalibration. Do not use a flowmeter that you suspect is out of calibration. Inaccurate oxygen delivery can have serious consequences.
Understanding Flowmeter Variations
Different types of flowmeters exist (e.g., rotameters, Thorpe tubes), and each may have slightly different reading methods. Always familiarize yourself with the specific type of flowmeter you are using. Consult the manufacturer’s instructions or seek guidance from a trained professional if you’re unsure about operating a particular type of flowmeter. Pay close attention to any specific instructions or unique features of your model.
Dealing with Environmental Factors Affecting Readings
Environmental factors like extreme temperatures and pressure changes can subtly influence the flowmeter’s performance. While most modern flowmeters are designed to withstand reasonable fluctuations, extreme conditions could affect accuracy. Note that very high or low ambient temperatures might slightly affect readings. If working in such conditions, consider using a flowmeter specifically designed for those environments or take additional precautions. Always ensure the flowmeter is placed appropriately, avoiding direct exposure to extreme heat or cold. Regular checks and maintenance are crucial in extreme operating conditions. Consider using a flowmeter with temperature compensation features to minimize the impact of varying temperatures. Documentation of environmental conditions at the time of each reading can be helpful in troubleshooting inconsistent results. Furthermore, ensure that the oxygen supply is not compromised by pressure drops in the system. Check for any leaks or blockages in the oxygen delivery system that might impact flow rate. If you suspect a pressure issue, contact a qualified technician to investigate.
| Possible Issue | Troubleshooting Steps | When to Seek Assistance |
|---|---|---|
| Faint/unclear markings | Use a magnifying glass, improve lighting | If markings are severely illegible |
| Needle sticking | Gently tap the flowmeter | If sticking persists |
| Persistent bubbles | Check for kinks, gently tap | If bubbles remain after attempts to dislodge |
| Inconsistent readings | Check for calibration issues, environmental factors | If inconsistent readings continue despite troubleshooting |
Maintaining the Oxygen Flow Meter for Optimal Performance
Regular Cleaning and Inspection
Keeping your oxygen flow meter clean and regularly inspected is crucial for accurate readings and safe operation. Dust, debris, and moisture can interfere with the internal mechanisms, leading to inaccurate oxygen delivery. A simple wipe-down with a slightly damp, lint-free cloth is usually sufficient. Avoid using harsh chemicals or abrasive cleaners, as these could damage the meter’s delicate components. Inspect the tubing connections for any cracks or damage. Any sign of wear or tear should prompt replacement to avoid leaks and ensure the safe and accurate delivery of oxygen.
Calibration and Verification
Oxygen flow meters, like any precision instrument, require periodic calibration to guarantee accuracy. The frequency of calibration depends on the meter’s usage and manufacturer’s recommendations. Generally, a yearly calibration is a good starting point, especially in high-usage settings. Calibration involves comparing the meter’s readings to a known standard to identify and correct any discrepancies. This process should be carried out by a qualified technician using appropriate calibration equipment. Never attempt to calibrate the meter yourself unless specifically trained to do so.
Storage and Handling
Proper storage and handling practices contribute significantly to the longevity and accuracy of your oxygen flow meter. Store the meter in a clean, dry, and protected environment, away from extreme temperatures, direct sunlight, and excessive humidity. Avoid dropping or bumping the meter, as this can damage internal components and affect its accuracy. When transporting the meter, use a protective case or bag to minimize the risk of damage. Always handle the meter with care, avoiding forceful manipulation of its parts.
Troubleshooting Common Issues
Understanding common issues and their solutions can save time and ensure uninterrupted oxygen delivery. If the flow meter displays inaccurate readings, first check for any obstructions in the tubing or connection points. Make sure the oxygen supply is adequate and that all connections are secure. If the problem persists, contact a qualified technician for professional assistance. Attempting to repair the meter yourself could further damage the device and potentially compromise patient safety. Remember to always consult the manufacturer’s instructions for specific troubleshooting guidance.
Environmental Considerations
The environment plays a role in the performance and lifespan of an oxygen flow meter. Extreme temperatures, high humidity, and exposure to corrosive substances can all negatively impact its accuracy and reliability. If using the meter in challenging environmental conditions, consider using a protective enclosure or taking extra precautions to minimize exposure to harsh elements. Regular monitoring and maintenance are particularly crucial in challenging environments.
Documentation and Record Keeping
Maintain detailed records of all maintenance activities performed on the oxygen flow meter. This includes the date of cleaning, inspection, and calibration, along with any identified issues and corrective actions. This documentation is crucial for tracking the meter’s performance over time and ensuring compliance with relevant regulations. This information is valuable for preventative maintenance scheduling and for addressing any potential issues in a timely manner.
Understanding Manufacturer’s Instructions
The manufacturer’s instructions provide critical information regarding the specific maintenance requirements of your oxygen flow meter. These instructions contain detailed guidance on cleaning, calibration, troubleshooting, and other important aspects of meter maintenance. Always consult the manufacturer’s instructions before performing any maintenance procedure. Adhering to these instructions is essential for ensuring the meter’s accuracy, safety, and longevity. Keep the instructions readily available for easy reference.
Safety Precautions and Emergency Procedures
Maintaining an oxygen flow meter involves implementing safety precautions to minimize risks to both the user and the patient. Always ensure that the meter is handled with care to avoid damage or accidental injury. Regularly check the connections for leaks to prevent oxygen loss and ensure accurate delivery. If a malfunction occurs, promptly follow emergency procedures as outlined in the manufacturer’s instructions, or immediately consult a qualified healthcare professional or technician. Safety is paramount when handling medical equipment, and adhering to safety protocols is vital for the safety and well-being of all involved. In the event of an emergency, prioritize patient safety and contact emergency services if needed. Regular training and competence in operating and maintaining the oxygen flow meter will facilitate safe and appropriate response in emergency situations. Familiarize yourself with the location and operation of emergency oxygen supplies in your immediate environment.
Regular Preventative Maintenance Schedule
Establishing a regular preventative maintenance schedule is key to ensuring the optimal performance and longevity of your oxygen flow meter. This schedule should encompass regular cleaning, visual inspections, and scheduled calibration as recommended by the manufacturer. A sample schedule might include a weekly visual inspection for damage or debris, a monthly cleaning, and an annual professional calibration. Maintaining a detailed log of maintenance activities, including dates and outcomes, is essential for tracking the meter’s performance and identifying potential problems before they escalate. Proactive maintenance minimizes the risk of unexpected failures and ensures the continued reliable delivery of oxygen.
Table of Recommended Maintenance Intervals
| Maintenance Task | Recommended Frequency | Notes |
|---|---|---|
| Visual Inspection | Weekly | Check for damage, debris, or loose connections. |
| Cleaning | Monthly | Use a slightly damp, lint-free cloth. Avoid harsh chemicals. |
| Calibration | Annually (or as recommended by the manufacturer) | Professional calibration is essential for accuracy. |
| Functional Test | Quarterly | Verify flow accuracy across the range of settings. |
Reading an Oxygen Flow Meter: A Guide for Healthcare Professionals
Accurate interpretation of an oxygen flow meter is crucial for ensuring the safe and effective delivery of supplemental oxygen to patients. These meters typically display the flow rate in liters per minute (LPM). The reading should be checked regularly to ensure the prescribed flow rate is maintained and to identify any potential equipment malfunctions or leaks. It’s important to understand that the displayed LPM represents the *flow rate* at the outlet of the flow meter; the actual delivered oxygen concentration to the patient can vary based on factors like the type of delivery system (e.g., nasal cannula, mask) and the patient’s breathing pattern.
Most oxygen flow meters are simple to read, featuring a clearly marked scale with numerical increments indicating LPM. The float or indicator needle should align with the desired flow setting. If the indicator isn’t within the expected range, check for kinks in the tubing, ensure connections are secure, and assess for any leaks in the system. In the event of discrepancies, consult the device’s instruction manual and contact a qualified medical professional for assistance. Regular calibration of the oxygen flow meter is essential to maintain accuracy and patient safety.
In situations requiring precise oxygen delivery, such as during anesthesia or critical care, more sophisticated monitoring systems may be employed, providing real-time data on delivered oxygen concentration and patient oxygen saturation levels. These advanced monitoring techniques allow for continuous assessment and adjustments to the oxygen flow rate as needed, ensuring optimal patient oxygenation. Always prioritize patient safety and adhere to established clinical protocols when managing supplemental oxygen therapy.
People Also Ask: Reading Oxygen Flow Meters
How do I know which numbers to read on the oxygen flow meter?
Understanding the Scale
Oxygen flow meters typically have a clearly marked scale indicating liters per minute (LPM). The numbers on the scale directly represent the flow rate of oxygen being delivered. The indicator (a float or needle) should rest on the desired LPM value. For example, if the prescription is for 2 LPM, the indicator should align with the “2” on the scale.
What if the flow meter reading is incorrect?
Troubleshooting Low or High Readings
If the flow meter reading is unexpectedly high or low, several issues could be responsible. First, visually inspect the tubing for kinks or obstructions which can reduce flow. Secondly, ensure all connections are secure – loose fittings can lead to leaks and inaccurate readings. If the problem persists, it is vital to check for any leaks in the system. A qualified healthcare professional should be consulted to diagnose and resolve any persistent discrepancies.
What are the common types of oxygen flow meters?
Different Meter Types
Several types of flow meters exist, each with its own mechanism for displaying the flow rate. Bourdon gauge flow meters utilize a pressure-sensitive mechanism and a dial. Thorpe tube flow meters feature a float within a calibrated tube. While the appearance may vary, all flow meters will indicate the flow rate in LPM. Understanding your specific flow meter type can help to ensure accurate interpretation of the display.
